Application:

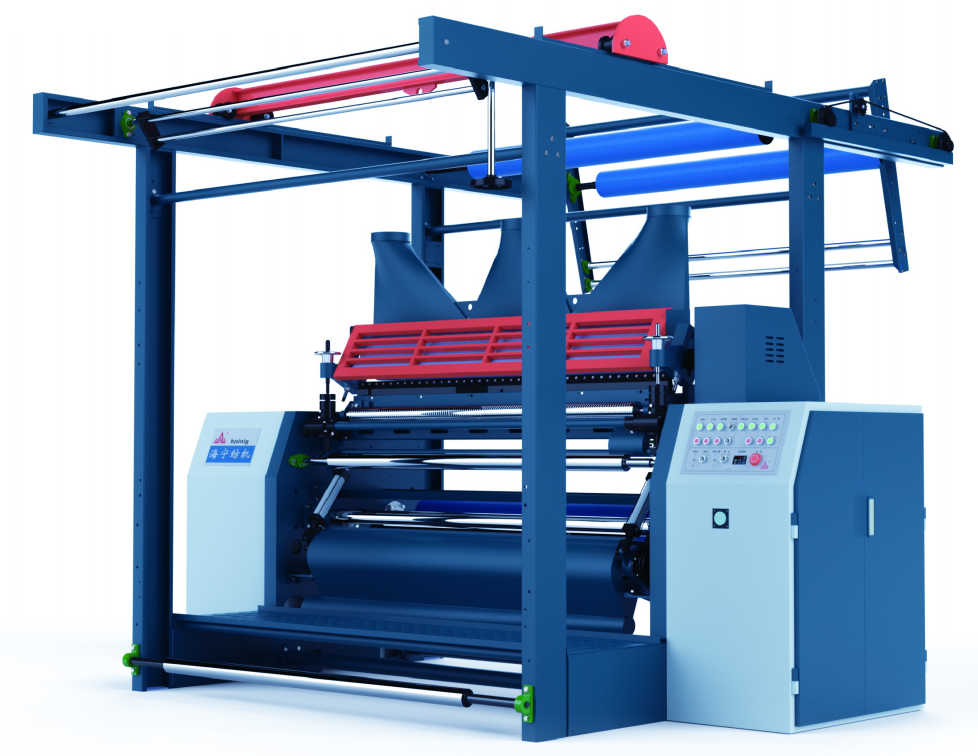

Model MB373D shearing machine is mainly used for shearing hards or thread end on the surface of woolen fabric, cotton fabric and embroidery.

 Feature:

1.The speed of shearing cylinder is adjusted by a pair of V-belt pulley, which with two steps. The fabric is adjusted by inverter.

2.Lifting of shearing cylinder: pneumatic.

 3.Seam detector, electric alarm, button control, shearing blades lift up by pneumatic.

4.Transimission of fabric: Forward and inching back.

5.Height of shearing: Instrumnt display.

Main technical data:

 Item                Data

Nominal width     1800 2200

Fabric speed    4.8-48 variable

Diameter            ф145

Number of spiral        20

cylinder Rotation rate 290,1000 (two steps)

Motor power(Not include dust exhaustor) 5.89 7.01

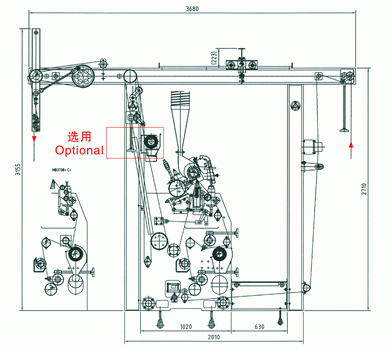

Overall dimensions 3680x3710(4110)x3155

Machine weight     3500 4300
