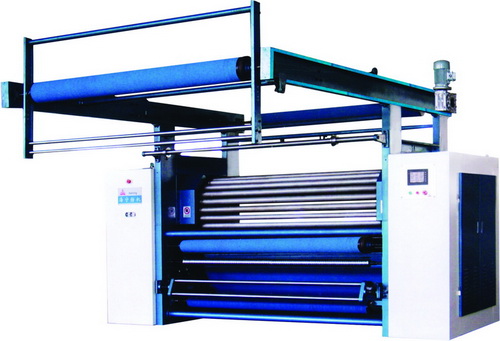

ME409 RAISING MACHINE





Application

This machine is suit for the surface raising of tubular and open width knitting fabrics, which adopted intelligent controlling board with touch screen display.

Feature

1.Controlled by man-machine conversation ,PLC, inverter.

2.Driving system with inverter-controlled multi motors, terse in structure, easy in maintenance.

3.Drum speed, fabric speed, fabric tension and raising power are freely adjusted in a large scope.

4.10 sets of processing parameter can be stored to ensure the repeatability.

5.Set up the para meter in running,zero starting, automatic fabric feeding and reverting are available.

6.Touble alarm and diagnosis are available.

7.Fastening fabric device is optional when processing the tubular knitting fabrics.

8.Front fabric tension is freely adjusted by inverter, reliable and easy.

Main data:

Item                                  Data

Nominal width (mm) 1800 2000

Speed of fabric (m/min) 10~26

Drum speed (r/min) 90~120

Number of raising roller (pcs)    24

Roller dia (mm) ф61

Motor power (not include dust exhaustor)(Kw)    13.15kW

Overall dimensions (L×W×H)mm 3870(4070)x4110x2915
